Dettagli

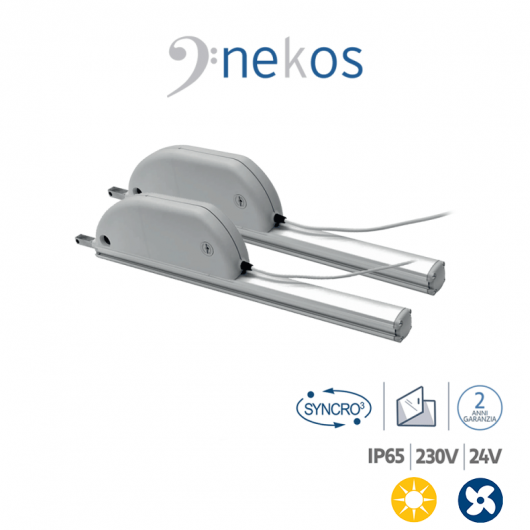

SKYRO 650 SYNCRO³ Nekos - Pair of rack actuators for skylights and domes
Skyro 650 Syncro is the new linear rack actuator with Syncro³ technology (Nekos patent). The new Skyro 650 has multiple possibilities of use thanks to force 650 N in traction and pushed, controlled and managed by microprocessor. Linear rack actuator suitable for the handling of domes, top hinged windows and dormers. Perfect for mounting multiple points boosted on the same window with actuators in Syncro and non-motorized stems.

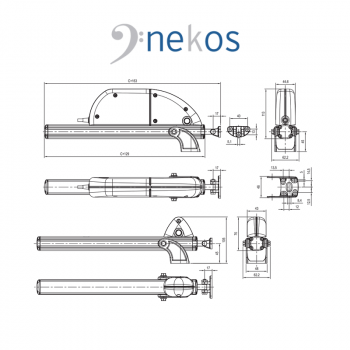

TECHNICAL DESIGN
TECHNICAL DATA
MODEL |
SKYRO 650 SYNCRO 230V |
PUSH FORCE AND TRACTION |
650 N |
STROKE AVAILABLE |
180 - 230 - 350 - 550 - 750 - 1000 mm |
SUPPLY VOLTAGE |
110 / 230 Vac - 50 / 60 Hz |
CURRENT ABSORPTION |
0,37 / 0,18 A |
POWER CONSUMPTION |
28 W / 24 W |
AVERAGE SPEED |
7 mm/s |
END-STROKE |
At absorption of power |
ELECTRICAL INSULATION |
Classe II |
TEMPERATURA FUNZIONAMENTO |
-20 to +70 °C |
PROTECTION DEGREE |
IP 65 |
SOFT STOP |
Yes |
RELAXATION FUNCTION |
Yes |
SYNCRO FUNCTION 3 |
Yes (MAX 4) |
PARALLEL CONNECTION |
Yes (MAX 20) |
END-STROKE AT OPENING |
At absorption of power |
END-STROKE AT CLOSING |
At absorption of power |
OVERLOAD PROTECTION |
At absorption of power |
AMOUNT OF NOISE |
55 dB(A) |
MODEL |
SKYRO 650 SYNCRO 24V |
PUSH FORCE AND TRACTION |
650 N |
STROKE AVAILABLE |
180 - 230 - 350 - 550 - 750 - 1000 mm |
SUPPLY VOLTAGE |
24 V c.c. |
CURRENT ABSORPTION |
1.0 A |
POWER CONSUMPTION |
24 W |
AVERAGE SPEED |
7 mm/s |
END-STROKE |
At absorption of power |
ELECTRICAL INSULATION |
Classe III |
TEMPERATURA FUNZIONAMENTO |
-20 to +70 °C |
PROTECTION DEGREE |
IP 65 |
SOFT STOP |
Yes |
RELAXATION FUNCTION |
Yes |
SYNCRO FUNCTION3 |
Yes (MAX 8) |
PARALLEL CONNECTION |
Yes (MAX 20) |
END-STROKE AT OPENING |
At absorption of power |
END-STROKE AT CLOSING |
At absorption of power |
OVERLOAD PROTECTION |
At absorption of power |
AMOUNT OF NOISE |
55 dB(A) |
TECHNICAL FEATURES
Linear rack actuator suitable for the handling of domes, windows to protrude and dormers. Push and traction power of 650N. Mounting more points Pushed on the same window with actuators in Syncro and non-motorized stems. Working at 110-230V ~ 50 / 60Hz or 24V DC. Supplied complete with tilting universal bracket, which can be fixed over the length of the stem by means of two sliding clamps. End of stroke at Absorption of Power in opening and closing and as electronic protection to overload. Connectable synchronized with other actuators and in parallel. In accordance with the reference EU directives (EMC directives, low voltage directives). Standard colors: silver anodized for metal parts in aluminum extruded, gray (RAL7047) for the gearmotor. Color of power cable: white.
AVAILABLE VARIANTS
6220501
STROKE 180
6220502
STROKE 230
6220503
STROKE 350
6220504
STROKE 550
6220505
STROKE 750
6220506
STROKE 1000
6230501
STROKE 180
6230502
STROKE 230
6230503
STROKE 350
6230504
STROKE 550
6230505
STROKE 750
6230506
STROKE 1000

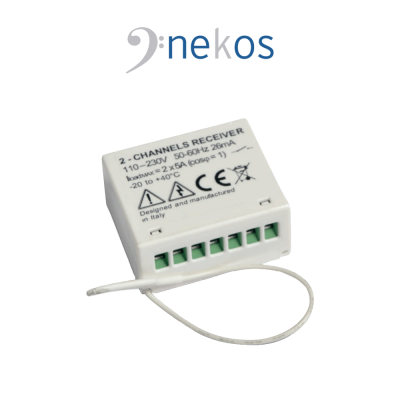

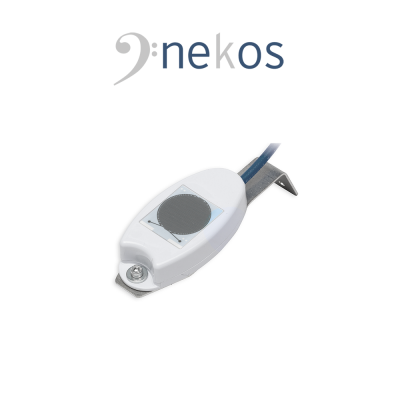

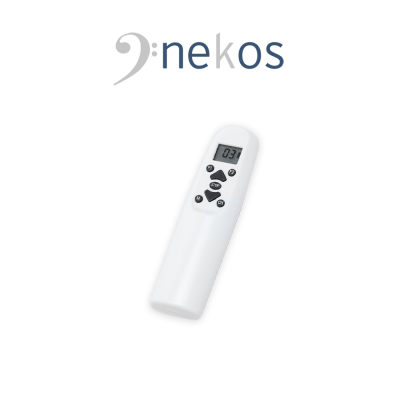

ACCESSORIES
4010013
4010014
4010015
