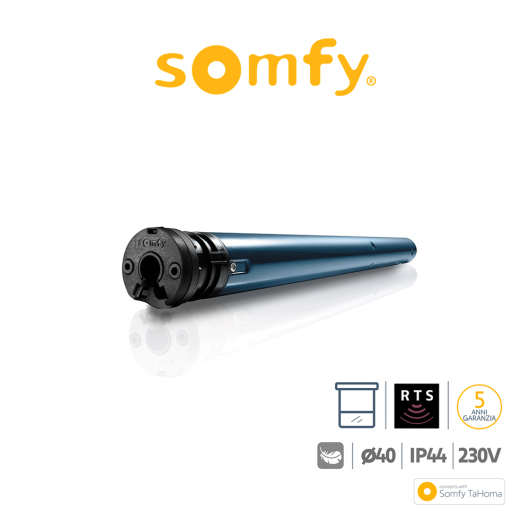

SONESSE 40 RTS Somfy radio motor for interior blinds and roller blinds
The Somfy SONESSE 40 RTS interior blind motor is a specific motor for interior applications in any type of home. This range of Somfy motors can motorize any type of indoor application such as, for example, Venetian blinds, roller blinds, pleated blinds and cellular blinds, Roman blinds, projection screens. The Somfy SONESSE 40 RTS internal blind motor is designed to guarantee maximum silence in the home.
TECHNICAL DESIGN
TECHNICAL DATA
MODEL |
CODE |
L1 |
L2 |
TORQUE |
SPEED |
THEORICAL CARRYING CAPACITY |
POWER CONSUMPTION |
MINIMUM TUBE DIAMETER |
SONESSE 40 RTS 3/30 | 1001573 | 504 mm | 480 mm | 3 Nm | 30 rpm | 15 Kgf | 95 W | Ø 40 × 1,5 mm |
SONESSE 40 RTS 6/20 | 1001577 | 535 mm | 511 mm | 6 Nm | 20 rpm | 30 Kgf | 120 W | Ø 40 × 1,5 mm |
SONESSE 40 RTS 9/12 | 1001581 | 535 mm | 511 mm | 9 Nm | 12 rpm | 45 Kgf | 120 W | Ø 40 × 1,5 mm |
SONESSE 40 RTS 3/30
SONESSE 40 RTS 6/20
SONESSE 40 RTS 9/12
TECHNICAL FEATURES
Perfet for indoor use, only 41 db of noise Elettronic adjustment of end-stops directly from the remote Modulis function integrated perfect for blinds Compatible with the wide range of RTS remote controls and sensors Double-insulated operator that not require ground connection
