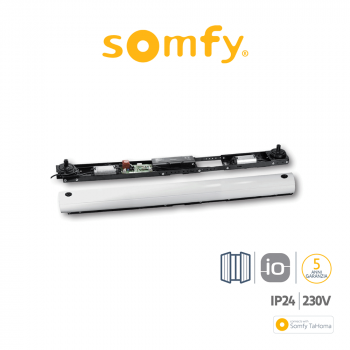

YSLO FLEX io 2P Somfy radio motor for double-leaf swing shutters
Dettagli
YSLO FLEX io 2P Somfy radio motor for double-leaf swing shutters

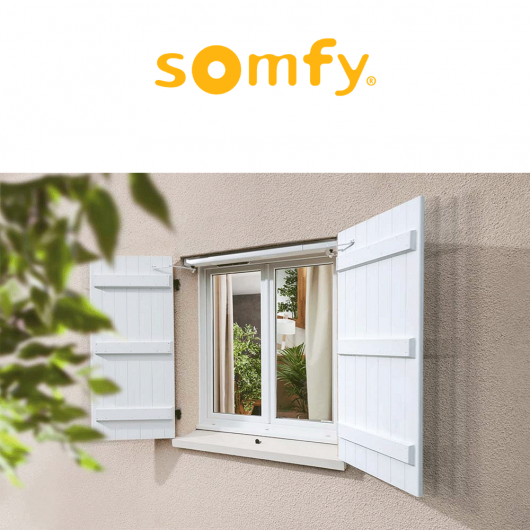

The ideal solution for managing single or multi-leaf windows is the Somfy YSLO FLEX io 2P radio motor for double leaf shutters, which boasts excellent construction quality and sufficient power to operate in complete safety on all types of shutters. Thanks to YSLO FLEX io you will be able to enjoy all the advantages of connected shutters: different management modes, suitable for every lifestyle, the feedback of the command ensures, in real time, that the shutters close correctly, the compact design integrates perfectly on the façade and the silent motor guarantees an important acoustic comfort. The Yslo io operator adapts to all swing shutters, new or already installed, in wood, PVC or aluminum and from 1 to 4 doors. The new Yslo io range is also equipped with io-homecontrol radio technology, the most advanced two-way radio protocol in terms of reliability, safety and functionality, and also features wind protection, obstacle detection and frost protection. Thanks to the controlled closure, the doors close perfectly while preserving their integrity. The motor design has been completely redesigned to facilitate installation even in the most complex cases: the motors are lighter, particularly suitable for installation under a lintel, and the limit switches are automatic. The adjustment of the motor is done directly from the control point, without having to open the motor casing. Discover the whole Somfy range on the Window accessories shop: you will be able to receive high quality products at your home at an affordable price.

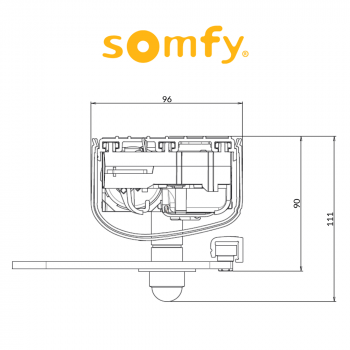

TECHNICAL DESIGN
TECHNICAL DATA
MODEL |
YSLO FLEX io 2P |
INPUT VOLTAGE |
230 Vac ~ 50 Hz |
NOMINAL TORQUE / PEAK |
4 Nm / 50 Nm |
POTENZA ASSORBITA / PICCO |
0,5 W / 50 W |
RADIO FREQUENCY |
868 - 870 MHz |
ELECTRICAL INSULATION |
Classe II |
OPERATING TEMPERATURE |
da -20 a +60 °C |
INGRESS PROTECION |
IP 24 |
MAX COMMAND POINTS |
9 |
MAX SENSORS io |
3 |
TECHNICAL FEATURES
In only 3 steps the motor in ready for work When closing, in case of obstacle detection, the shutter opens immediatly In case of frost, the motor don't cose the shutter but immediatly stops the action The anti-intrusion protection provided by the swing shutters is reinforced by the motor that blocks the shutters once closed Use a remote control or switch to open and close your hinged shutters, you no longer have to open and close them by handte, Customize the color of the motor housings to match the windows and shutters
AVAILABLE VARIATIONS
1240175
White body + white arms
1240176
Brown body + black arms
SUPPLIES
A Sx body part
B Main body part
C Dx body part
D Electromagnetic module
E Mecanichal module
F Arms (x2)
G Mounting plate
H Terminals (x4)
I Guide (x2)
J Gasket (x2)
K Rivets (x4)
L Screw (x2)
M Whashers (x2)
N Screwcovers (x2)
O Rollers (x2)
P Roller axes (x2)
Q Roller screws (x2)
R Adjustable stop (x2)
S Smoove Open/Close io
T fairlead (x2)
U Chassis (x2)
V Secondary cable
W Protection angle
X Zip Tie
